ECP106-INT

Cloud Managed 1U 10A Smart PDU with 6 Metered Outlets (ECP106-INT)

Introduction

This Quick Start Guide is designed to guide you through installing the PDU 6P 10A 200-240V, model ECP106-INT, including hardware mounting and configuration.

PDU 6P 10A 200-240V

Cloud Managed 1U 10A Smart PDU with 6 Metered Outlets

Model: ECP106-INT

Function

• Real-time power consumption monitoring and alarming per outlet

• Remote switching per outlet

• 1.3 inches display for visualizing power information

• Attempt to reconnect from internet outages automatically

• Local and cloud management with analytic reports

• Bracket ears provide different angle installation

Safety

• 12A circuit breaker from overloading protection

• Fireproof MOV and grounded protection

• UL 62368-1, CE, RCM

Integration

• RESTFUL API supported

• SNMP v1 2c 3 supported

Content Quick Links

Hardware Overview

Hardware Installation

Management Plane

Package Contents

System Requirements

Web Browser:

Google Chrome (105.0.5195.127 or later)
Microsoft Edge (112.0.1722.48 or later)

Network Requirements

Before you get started, please make sure your network environment is DHCP-enabled. EnGenius PDU is assigned with an IP address dynamically by the DHCP server. You could check the given IP address from PDU's LCD. The IP address is shown under Menu>information.

Hardware Overview

Ports

Reset to default:

Press and hold the reset button for at least 15 seconds. Holding it for less than 15 seconds will only trigger a reboot. The system will restart automatically without any noticeable indication.
To initiate a factory reset, navigate to the LCD menu and select the "Factory reset" option. The screen will then indicate the resetting process with a progress bar.

LEDs

Safety Precautions

Read the following before installing or operating the Power Distribution Units (PDU)

Use only the supplied hardware to attach the mounting brackets.
Intended to be used in a location having equipotential bonding (such as a telecommunication center, a dedicated computer room
Installation instructions that require verification of the PROTECTIVE EARTHING connection of the socket-outlet by a SKILLED PERSON
Do not use extension cords or adapters with this PDU
Never install a PDU or associated wiring or equipment during a lightning storm
Ensure that the power cord, plug, and socket are in good condition

Hardware Installation

Place on a Flat Surface in Computer Room

Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. (Marking or Instruction) The PDU can be secured using the screws and rack ears included in the accessory kit

Peut être installé dans des salles de matériel de traitement de l’information conformément à l’article 645 du National Electrical Code et à la NFPA 75 (Marking or Instruction)

Step 1: Attach the Rubber Footpads to the bottom corners of the PDU. The Rubber Footpads help secure the PDU and protect it from vibration and shock when stacked.

Step 2: Use (M3 x5) screws to attach the bracket to both sides of the device. This will allow you to secure the PDU to the flat surface.

Step 3: Attach the bracket with 4(T4x19) to secure and position the PDU firmly to the flat surface.

Rack Mount

Securely attach the device with rack ears onto the rack using screws. Make sure it is securely attached and not wobbling.

(Due to different rack specifications, we have not included rack mounting screws. We recommend using M5 x 12 screws along with washers for securing.)

Power On Device

Connect the Power cord to the front of the PDU, and then plug it into the power outlet.

Management Plane

EnGenius Cloud To-Go provides flexibility to manage your devices based on your network planning and deployment.

Option A: Cloud Management

Option B: Standalone Configuration

Cloud Management

Manage and monitor the PDU through the EnGenius Cloud To-Go with a mobile app or through the web portal.

EnGenius Cloud To-Go (iOS/Android)

⬇️ Download the Cloud To-Go mobile app here

Standalone Configuration

You can locate the computer, connect to the same network (subnet) as the PDU and use the web browser to access the device's local web GUI page for configurations whenever the device is in Standalone mode.

Option A: Configure with EnGenius Cloud

Step 1: Connecting to Ethernet

Connect the Ethernet cable from the EnGenius Switch directly to the DHCP-enabled network and make sure the PDU can reach the Internet.

Step2: Register Device

You can register the device either by Cloud To-Go mobile app or the EnGenius Cloud platform.

Cloud To-Go Mobile App

Open and log in to the EnGenius Cloud To-Go mobile app.
Scan the QR code on the back of the device via the app.

3. If the camera successfully scans a QR code, the app will display the Device Information. You could tap "Register" to complete the Registration.

4. Registered devices will be shown on the Inventory & License page. Upon sliding left the device, you can click "Add to Network" to add the device to your designated Network.

Network: Management domain shared same configurations within EnGenius Cloud.

EnGenius Cloud Platform

Log into the EnGenius Cloud Platform: https://cloud.engenius.ai/.

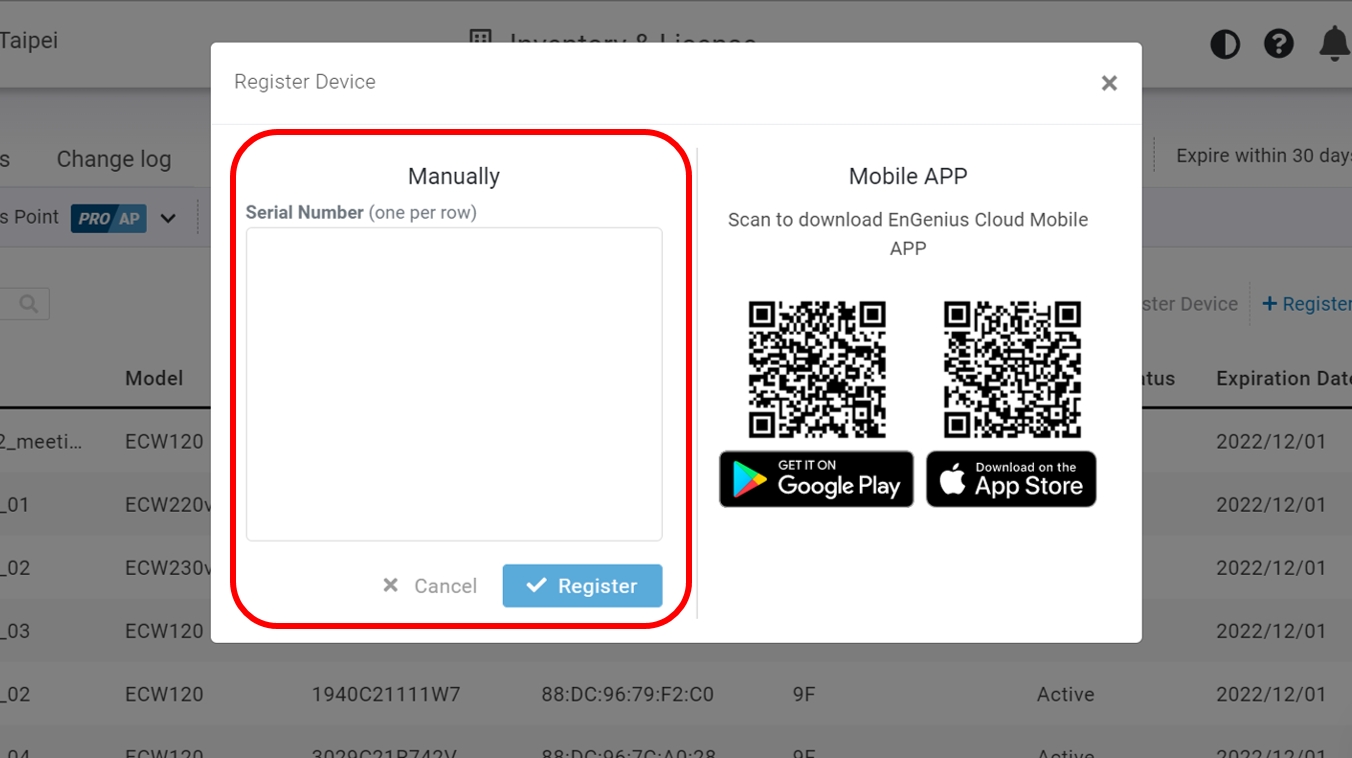

Go to the home > Inventory page and click "Register Device".
Enter the Serial Number of the device(s) for device registration. Please refer to "User Manual-Registering Devices to Organization".

4. Select the registered device and click "Assign to Network" to add the device to your designated Network.
