PDU 6P 10A 200-240V

Cloud Managed 1U 10A Smart PDU with 6 Metered Outlets (ECP106-INT)

Introduction

This Quick Start Guide is designed to guide you through installing the PDU 6P 10A 200-240V, model ECP106-INT, including hardware mounting and configuration.

PDU 6P 10A 200-240V

Cloud Managed 1U 10A Smart PDU with 6 Metered Outlets

Model: ECP106-INT

Function

• Real-time power consumption monitoring and alarming per outlet

• Remote switching per outlet

• 1.3 inches display for visualizing power information

• Attempt to reconnect from internet outages automatically

• Local and cloud management with analytic reports

• Bracket ears provide different angle installation

Safety

• 12A circuit breaker from overloading protection

• Fireproof MOV and grounded protection

• UL 62368-1, CE, RCM

Integration

• RESTFUL API supported

• SNMP v1 2c 3 supported

Content Quick Links

Hardware Overview

Hardware Installation

Configure with EnGenius Cloud

Package Contents

System Requirements

Web Browser:

• Google Chrome (105.0.5195.127 or later)

• Microsoft Edge (112.0.1722.48 or later)

Network Requirements

Before you get started, please make sure your network environment is DHCP-enabled. EnGenius PDU is assigned with an IP address dynamically by the DHCP server. You could check the given IP address from PDU's LCD. The IP address is shown under Menu>information.

Hardware Overview

Ports

Reset to default:

1. Press and hold the reset button for at least 15 seconds. Holding it for less than 15 seconds will only trigger a reboot. The system will restart automatically without any noticeable indication.

2. To initiate a factory reset, navigate to the LCD menu and select the "Factory reset" option. The screen will then indicate the resetting process with a progress bar.

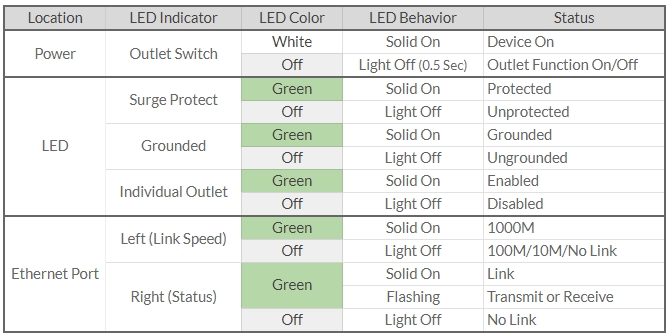

LEDs
