CloudSwitch MGPlus 24 Full PoE 6 SFP+

Cloud Managed 24-port 740W PoE++ Multi-Gigabit 2.5 Gb Switch with 6 x SFP+ Uplink Ports (ECS2530FP)

Introduction

This Quick Start Guide is designed to guide you through the installation of the CloudSwitch MGPlus 24 Full PoE 6 SFP+, model ECS2530FP, including hardware installation and configuration.

CloudSwitch MGPlus 24 Full PoE 6 SFP+

Cloud Managed 24-port 740W PoE++ Multi-Gigabit 2.5 Gb Switch with 6 x SFP+ Uplink Ports

Model: ECS2530FP

  • 8 x 90W PoE++ (802.3bt) ports and 16 x 30W PoE+ (802.3at) ports for flexible power distribution.

  • 6x 10G SFP+ ports for bandwidth-intensive applications.

Content Quick Links

Hardware Installation

Management Plane

Option A: Cloud Management

Option B: Standalone Configuration

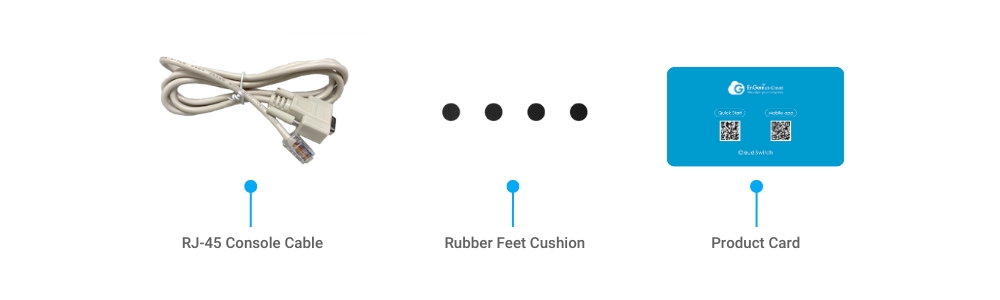

Package Contents

System Requirements

Web Browser:

  • Google Chrome (57.0.2987.110 and later)

  • Microsoft Edge (80.0.361.103 and later)

  • Mozilla Firefox (52.0 and later)

Hardware Overview

Front Panel - Ports & Buttons

  • Reset to default: Press and hold for over 10 seconds, and all ports LED will go off and on. Then the device will be reset to factory default settings.

  • Change LED display mode: Press the button to change the LED mode to display the PoE status of PoE-abled ports.

Front Panel - System & Ports LEDs
